New kinetic reactions

Programs React, X1t, and X2t in the Standard and Professional editions of The Geochemist's Workbench® can trace the progress of various types of kinetic reactions: dissolution, precipitation, redox transformation, and microbial catalysis and growth. Release 9.0 of the GWB accounts for three new types of kinetic reactions, as shown below.

Complexation and dissociation
Kinetic complexation diagram

GWB9 can evaluate rate expressions for the association of dissolved species to form aqueous complexes, as well as the dissociation of complex species.

To set a rate law for a complexation reaction, you specify

  • The name of the complex species,
  • Its onset concentration, if not at equilibrium initially,
  • The rate constant for association or dissociation, and
  • The orders of promoting and inhibiting species in the rate law

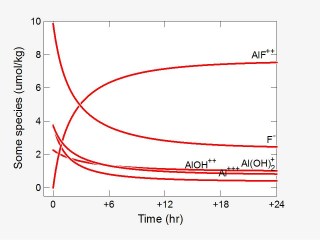

Click the image at left to see a React run tracing the complexation of F with Al3+. The link below opens a step-by-step tutorial.

Show me       More tutorials

Sorption and desorption
Kinetic desorption diagram

React, X1t, and X2t can include in a simulation the sorption or exchange of aqueous species onto mineral surfaces, and the release of species into solution as they desorb from a surface.

You set a kinetic surface reaction by supplying

  • The name of the surface complex to react kinetically,
  • Its initial concentration, if not at equilibrium,
  • The rate constant for sorption or desorption, and
  • The orders of promoting and inhibiting species

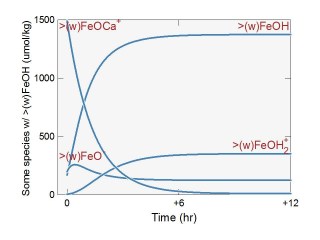

Click the diagram at left to see a React simulation of the desorption of Ca2+ from ferric oxyhydroxide, or below for a step-by-step tutorial.

Show me       More tutorials

Gas transfer
Kinetic gas transfer diagram

GWB9 can evaluate rate expressions describing the dissolution of gases from an external reservoir, and the exsolution of gases into one.

To configure a kinetic gas transfer reaction, you set

  • The name of the gas to be transferred,
  • The fugacity of that gas in the external reservoir,
  • A rate constant, and
  • The contact area between fluid and reservoir, in cm2/kg water

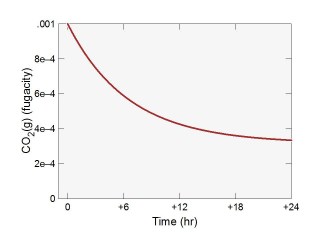

The image at left shows the results of simulating with React the kinetic exsolution of CO2 from a fluid. The icon below opens a tutorial.

Show me       More tutorials
