GWBplugin – Getting started with C++

The GWB plug-in feature is implemented as a Dynamic-Link Library (DLL). For C++ we provide a GWBplugin wrapper class contained in the header file GWBplugin.h and the GWBplugin.dll export library GWBplugin.lib to link against. This page answers common queries about how to use the C++ version of the plug-in feature.


Using the plug-in

Using the GWB plug-in feature:

  1. Compiling your program and linking to the GWB plug-in library.
  2. GWBplugin C++ wrapper class overview.
  3. Initializing the GWB application you wish to use.
  4. Configure and execute your calculations.
  5. Retrieving the results.

Compiling your program and linking to the GWB plug-in library.

The GWB plug-in has been tested on C++ compilers from Microsoft, Intel, and GCC. The header file GWBplugin.h you need is installed to your computer in the "src" directory of the GWB directory. The library you need to link to GWBplugin.lib is installed in the GWB directory (in earlier versions of GWB the library file was also in the "src" directory). For step-by-step instructions on setting up your build environment and examples using the Visual Studio command line, Visual Studio, and MinGW/MSYS/g++ please see the Quickstart tutorials and examples.

GWBplugin C++ wrapper class overview.

This is a synopsis of the C++ wrapper class provided in GWBplugin.h in the "src" directory of the GWB installation folder.

// GWBplugin.h

#define ANULL  -999999.0       // marker for an undefined value

class GWBplugin {
public:
GWBplugin();
~GWBplugin();
int initialize(const char* app_name, const char* file_name = NULL, const char* cmds = NULL);
int exec_cmd(char* uline);
int results(void* data, const char* value, const char* units  = NULL , int ix  = 0 , int jy  = 0);
};

Initializing the GWB application you wish to use.

Within your code you must first create a "GWBplugin" object. Next, use the "initialize" function to start the GWB application of interest by passing the application name, a optional file name for the GWB application to write output to, and any command-line type arguments.

Syntax

int initialize(
  const char* app_name,
  const char* file_name = NULL,
  const char* cmds = NULL
);

Parameters

app_name
A string containing the GWB application name you wish to use. Valid options are rxn, spece8, react, x1t, and x2t.
file_name [optional]
A string containing the name of the file you want the GWB application to write its output to. Can be NULL or an empty string if you do not want the output to be written to a file.
cmds [optional]
A string containing command-line options you could normally pass to the application when running it from the command-line. Can be NULL or an empty string.

Command-line options:
-cd
Change the working directory to the directory containing the input script specified with the -i option.
-nocd
Do not change the working directory.
-i <input_script>
Read initial input commands from the specified file.
-gtd <gtdata_dir>
Set directory to search for thermodynamic datasets.
-cond <cond_data>
Set the dataset for calculating electrical conductivity.
-d <thermo_data>
Set the thermodynamic dataset.
-s <surf_data>
Set a dataset of surface sorption reactions.
-iso <isotope_data>
Set a dataset of isotope fractionation factors.

Return value

Non-zero on success and zero on failure.

Remarks

  • For this function to succeed you must have your GWB installation folder added to the PATH environment variable so all the required DLLs can be found.
  • initialize must be done before trying to use any of the other functions.

Examples

#include "GWBplugin.h"
...
GWBplugin myPlugin;
...
// plug-in SpecE8 with no output written and no options
int success = myPlugin.initialize("spece8");
...
// plug-in React with output written to output.txt and no options
int success = myPlugin.initialize("react","output.txt");
...
// plug-in X1t with no output written, no working directory change,
//  and read input from pb_contam.x1t
int success = myPlugin.initialize("x1t",NULL,
     "-nocd -i \"c:/program files/gwb/script/pb_contam.x1t\"");

Configure and execute your calculations.

The "exec_cmd" function can be used to transmit commands to the plug-in. Each application has a chapter in the reference manual of the documentation on what commands are available. You use these commands to configure the application and then send a "go" command to trigger the calculations.

Syntax

int exec_cmd(
  char* uline
);

Parameters

uline
A string containing the command you wish to send to the GWB application.

Return value

Non-zero on success and zero on failure.

Remarks

None.

Examples

myPlugin.exec_cmd("3 mmol H+");
myPlugin.exec_cmd("2 mmol Ca++");
myPlugin.exec_cmd("5 mmolar Cl-");
myPlugin.exec_cmd("go");

Retrieving the results.

Retrieving the results using the GWB plug-in feature can be accomplished using the "results" function. The keywords, default units, and return types are the same as those listed in the Report Command chapter of the reference manual in the documentation. To use the "results" function you provide the address of a data block to fill, along with the desired report command and keywords, optional desired units, and the node location of choice (X1t and X2t only).

Syntax

int results(
  void* data,
  const char* value,
  const char* units = NULL,
  int ix = 0,
  int jy = 0
);

Parameters

data
Address of data block to fill. Can be NULL.
value
String containing the report command keyword and arguments.
units [optional]
String containing the units you would like the results returned in. Can be NULL or an empty string if you want default units.
ix [optional]
X node position.
jy [optional]
Y node position.

Return value

The number of values written (or to be written) to the data block.

Remarks

  • To determine the size of data block you will need first call this function with data parameter as NULL and with the rest of the parameters filled. If you know the report command you are using only returns a single value you can simply pass a pointer to the correct data type. Please see the "Appendix: Report Command" section in the GWB Reference Manual for details on data types and available keywords. The Reference Manual can be found in the documentation section of the website.
  • If the command fails for any reason, for example if the requested data doesn't exist or the specified unit conversion failed, the data will be filled with ANULL (-999999.0).
  • ix is only used when running X1t and X2t. Otherwise it is ignored.
  • jy is only used when running X2t. Otherwise it is ignored.

Examples

// get aqueous species names
int ndata = myPlugin.results(NULL,"species");
char** Species = new char*[ndata];
myPlugin.results(Species,"species");

// get aqueous species concentrations in mg/kg
double* Conc = new double[ndata];
myPlugin.results(Conc,"concentration aqueous","mg/kg");

// get pH at node 3,5
double pH = ANULL;
myPlugin.results(&pH,"pH",NULL,3,5);

Quickstart tutorials and examples

Step-by-step instructions for compiling GWBplugin Example 1 on the command line with the Microsoft or Intel compiler.

For this tutorial you will need to have Microsoft's Visual Studio (or Intel's C++ compiler) installed in addition to GWB 9.0.2 (or later). If you do not already have Visual Studio you can use the free Community edition found on the Visual Studio download page.

The first thing you need to do is to open the Visual Studio Command Prompt – Or Intel's ...

Visual Studio

Then create a working folder ...

mkdir "%homepath%\GWBplugin"

Change to that folder ...

cd "%homepath%\GWBplugin"

Copy the "src" folder from GWB installation – default install path shown ...

copy /Y "C:\Program Files\GWB\src"

Copy the GWBplugin.lib file from GWB installation – default install path shown ...

copy /Y "C:\Program Files\GWB\gwbplugin.lib"

Add the GWB installation folder to your path ...

set path=C:\Program Files\GWB;%path%

Compile the example file and tell the compiler to use the GWBplugin libary – For Intel use icl instead of cl...

cl GWBplugin_Cpp_Example1.cpp gwbplugin.lib

You are now ready to run the example ...

GWBplugin_Cpp_Example1.exe

Which should produce output similar to the following ...

Beginning run.
Finished run.

concentration of Cl- in molal is       0.05
concentration of Cl- in mg/kg is       1770

There are 4 aqueous species.

Cl-  =       1770 mg/kg
H+   = 1.139e-005 mg/kg
HCl  = 1.234e-011 mg/kg
OH-  =    0.02039 mg/kg

Congratulations on plugging into the GWB!

Step-by-step instructions for compiling GWBplugin Example 1 on the command line with MinGW, MSYS, and g++.

For this tutorial you will need to have MinGW with the g++ compiler and MSYS installed in addition to GWB 9.0.2 (or later).

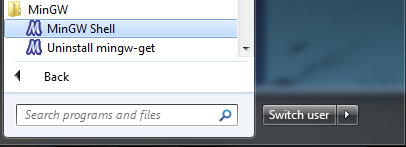

The first thing you need to do is to launch the MinGW Shell ...

MinGW

Then create a working folder ...

mkdir -p ~/GWBplugin

Change to that folder ...

cd ~/GWBplugin

Copy the "src" folder from GWB installation – default install path shown ...

cp /c/program\ files/gwb/src/* .

Copy the GWBplugin.lib file from GWB installation – default install path shown ...

cp /c/program\ files/gwb/gwbplugin.lib .

Add the GWB installation folder to your path ...

PATH=/c/program\ files/gwb:$PATH

Compile the example file and tell the compiler to use the GWBplugin libary ...

g++ GWBplugin_Cpp_Example1.cpp GWBplugin.lib -o GWBplugin_Cpp_Example1.exe

You are now ready to run the example ...

./GWBplugin_Cpp_Example1.exe

Which should produce output similar to the following ...

Beginning run.
Finished run.

concentration of Cl- in molal is       0.05
concentration of Cl- in mg/kg is       1770

There are 4 aqueous species.

Cl-  =       1770 mg/kg
H+   = 1.139e-005 mg/kg
HCl  = 1.234e-011 mg/kg
OH-  =    0.02039 mg/kg

Congratulations on plugging into the GWB!

Step-by-step instructions for compiling GWBplugin Example 1 in Microsoft Visual Studio 2017.

For this tutorial you will need to have Microsoft's Visual Studio 2017 installed in addition to GWB11 (or later). If you do not already have Visual Studio you can use the free Community edition found on the Visual Studio download page.

The first thing you need to do is to open Visual Studio ...

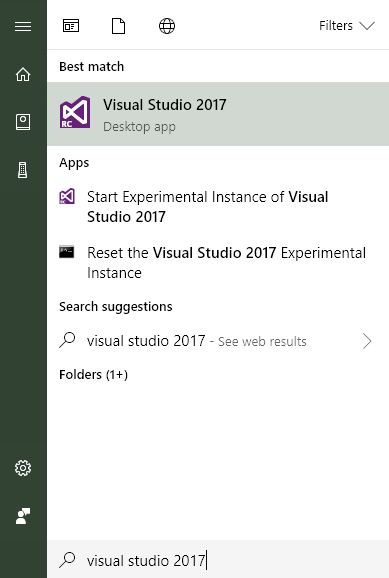

Visual Studio

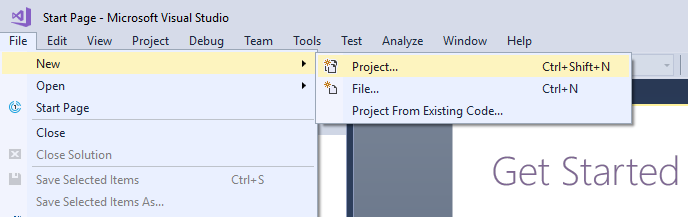

Then create a new project ... Ctrl+Shift+N

New project

Select the 'Visual C++' project type and use the 'Empty Project' Template. Give the project a name e.g. 'GWBplugin_example1'. Click 'OK' ...

Name project

Select the project in the 'Solution Explorer' (Ctrl+Alt+L opens it if it isn't already). Right click the project and select 'Add' then 'Existing Item...' (Shift+Alt+A)

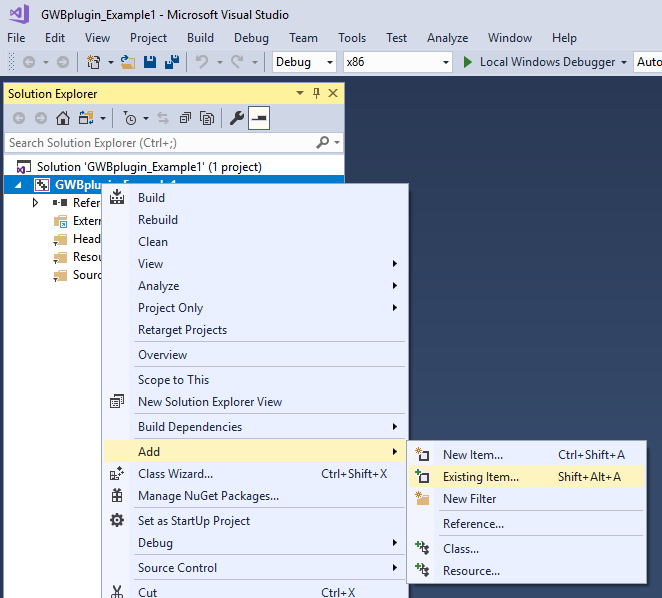

Add existing item

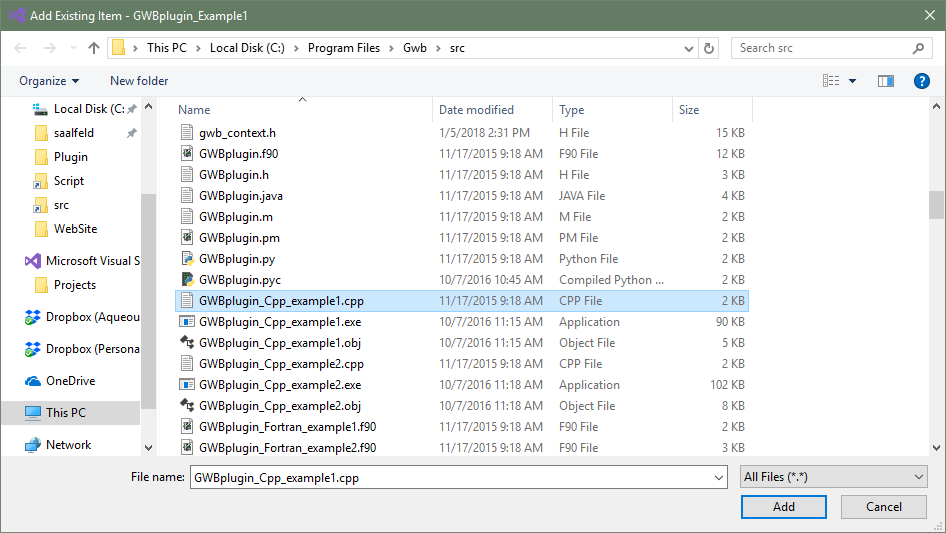

Browse to the 'src' subfolder of your GWB installation and select the 'GWBpugin_Cpp_example1.cpp' file and click 'Add'

GWB Plugin Example

Right click the project and open its 'Properties' ... Alt+Enter

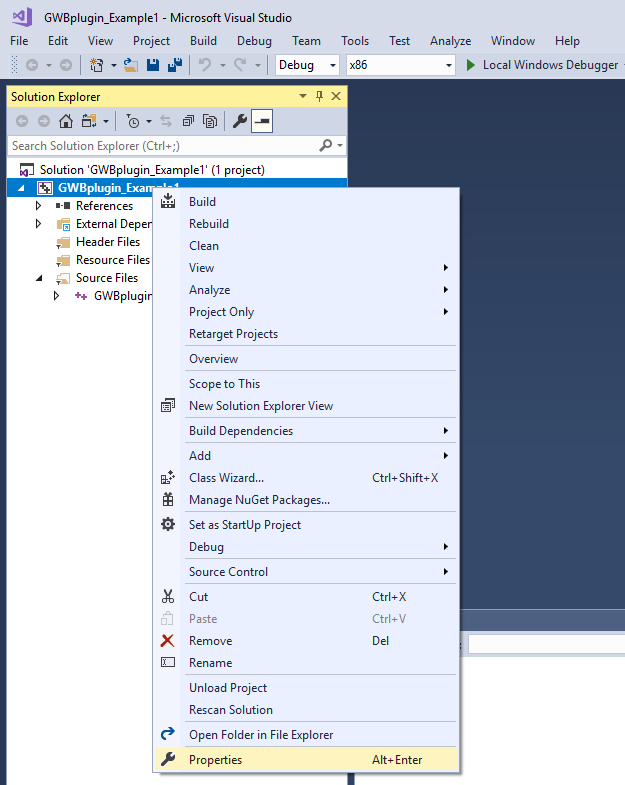

Properties

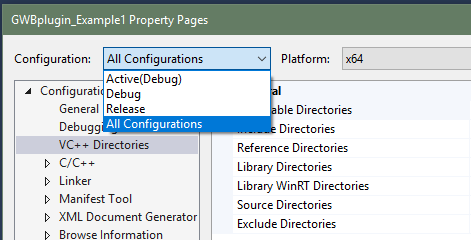

Select 'All Configurations' in the Configuration dropdown menu...

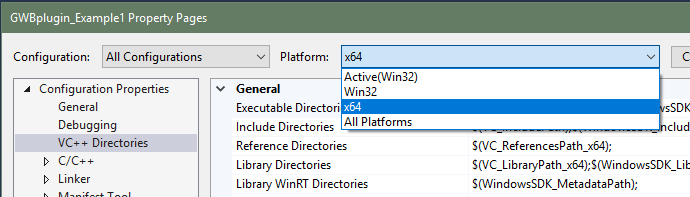

Select the platform matching the version of GWB you have installed in the Platform dropdown menu: 'x64' for 64-bit GWB or 'Win32' for 32-bit GWB

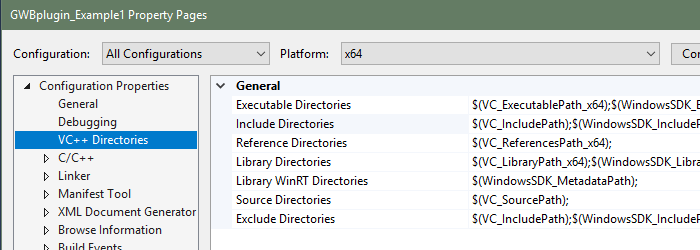

Select the 'VC++ Directories' page under the 'Configuration Properties' section

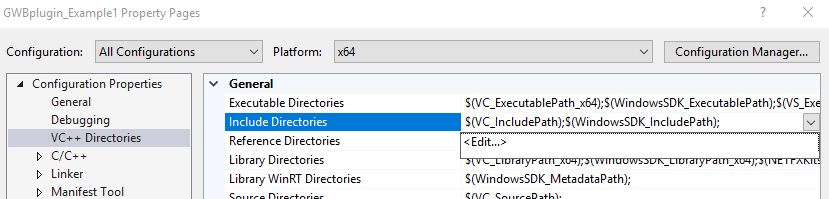

Edit the 'Include Directories' value.

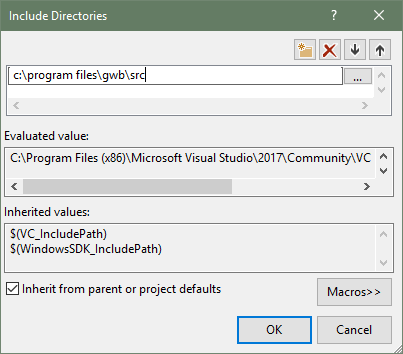

Add the 'src' folder of the GWB installation and click 'OK'

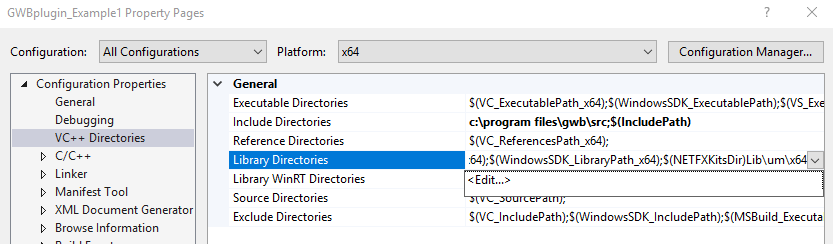

Edit the 'Library Directories' value.

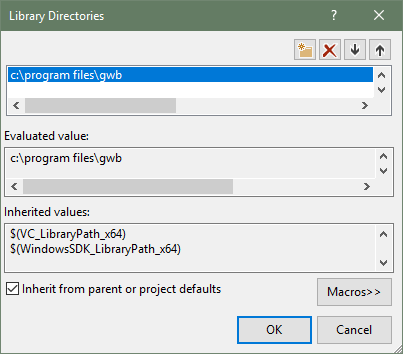

Add the GWB installation folder and click 'OK'

Under 'Configuration Properties' – 'Linker' – 'Input' edit the 'Additional Dependencies' value

Add gwbplugin.lib and click 'OK'

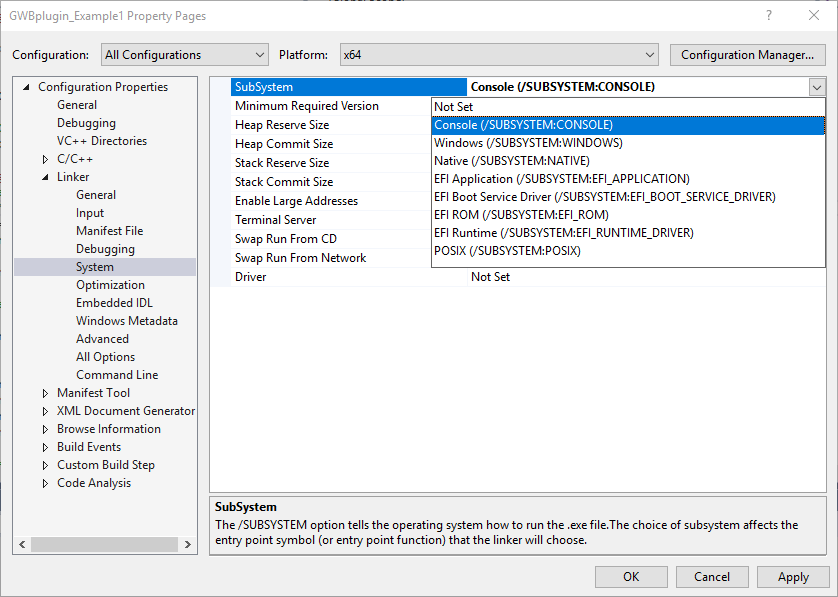

Under 'Configuration Properties' – 'Linker' – 'System' select 'Console (/SUBSYSTEM:CONSOLE)' as the 'SubSystem' value

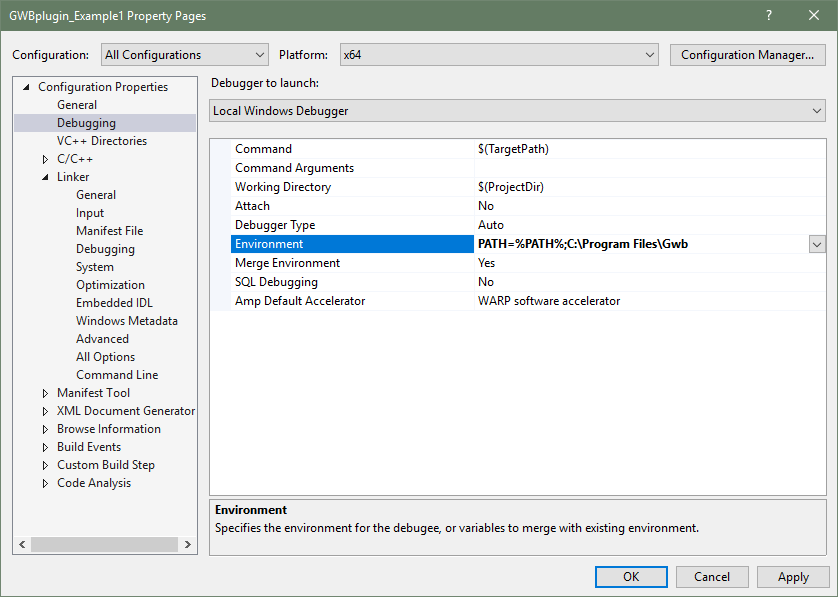

Under 'Configuration Properties' – 'Debugging' add the GWB install folder to the path in the 'Environment' variable. You can now click 'OK' to save the settings and close the project properties ...

Configuration properties Debugging

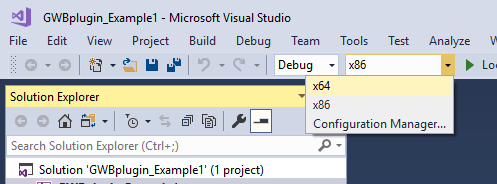

Before building the solution select the correct platform in the configuration dropdown

You are now ready to 'Build Solution' under the 'Build' menu ... Ctrl-Shift-B

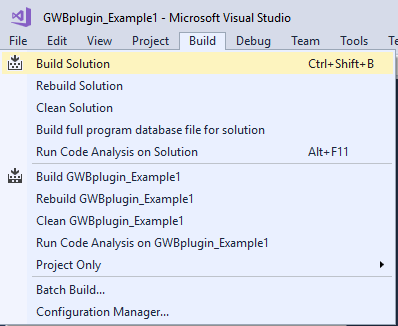

Build solution

Make sure the project builds correctly and there are no errors ...

Check errors

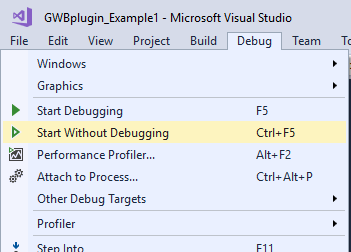

You can now 'Start Without Debugging' ... Ctrl-F5
Note: If you need to debug your program you must attach a debugger after the 'initialize' call to GWBplugin otherwise your program will encounter a run-time error. A good way to do this is to put in a getchar() call or something that will pause the program until you can attach the debugger.

Start Without Debugging

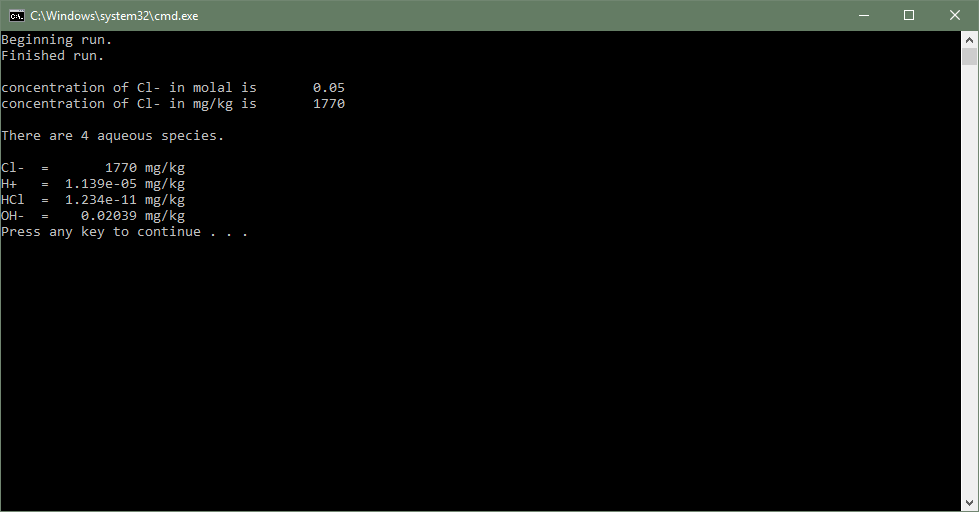

Assuming everything is setup correctly and built without errors your program should launch and give output like this ...

Output

Congratulations on plugging into the GWB!


C++ plug-in support

What C++ compilers are supported by the GWB plug-in?
The plug-in has been tested using compilers from Microsoft, Intel, and GCC.

Why does it say it can't find the GWBplugin.dll when I try to run my program?
In order to locate the GWB DLLs that the GWBplugin class uses you must add the GWB installation directory to the PATH environment variable.

Where are the GWBplugin files that I need to link against located?
The GWBplugin export library (GWBplugin.lib) is installed to the GWB directory and the header file (GWBplugin.h) is installed to the "src" folder in the GWB directory.
In some previous versions of GWB the export library was also in the "src" folder.

Why does my compiler say that it can't find the GWBplugin library to link against even though I am using the full path to link?
This result is commonly caused from using a 32-bit compiler to link against a 64-bit library, or vice versa. Check to ensure the version of the compiler you are using is the same as the version of GWB you installed.

For answers to additional questions please check the plug-in section of the reference manual in the documentation, our main support FAQ, or contact us.
